Elbow Covers

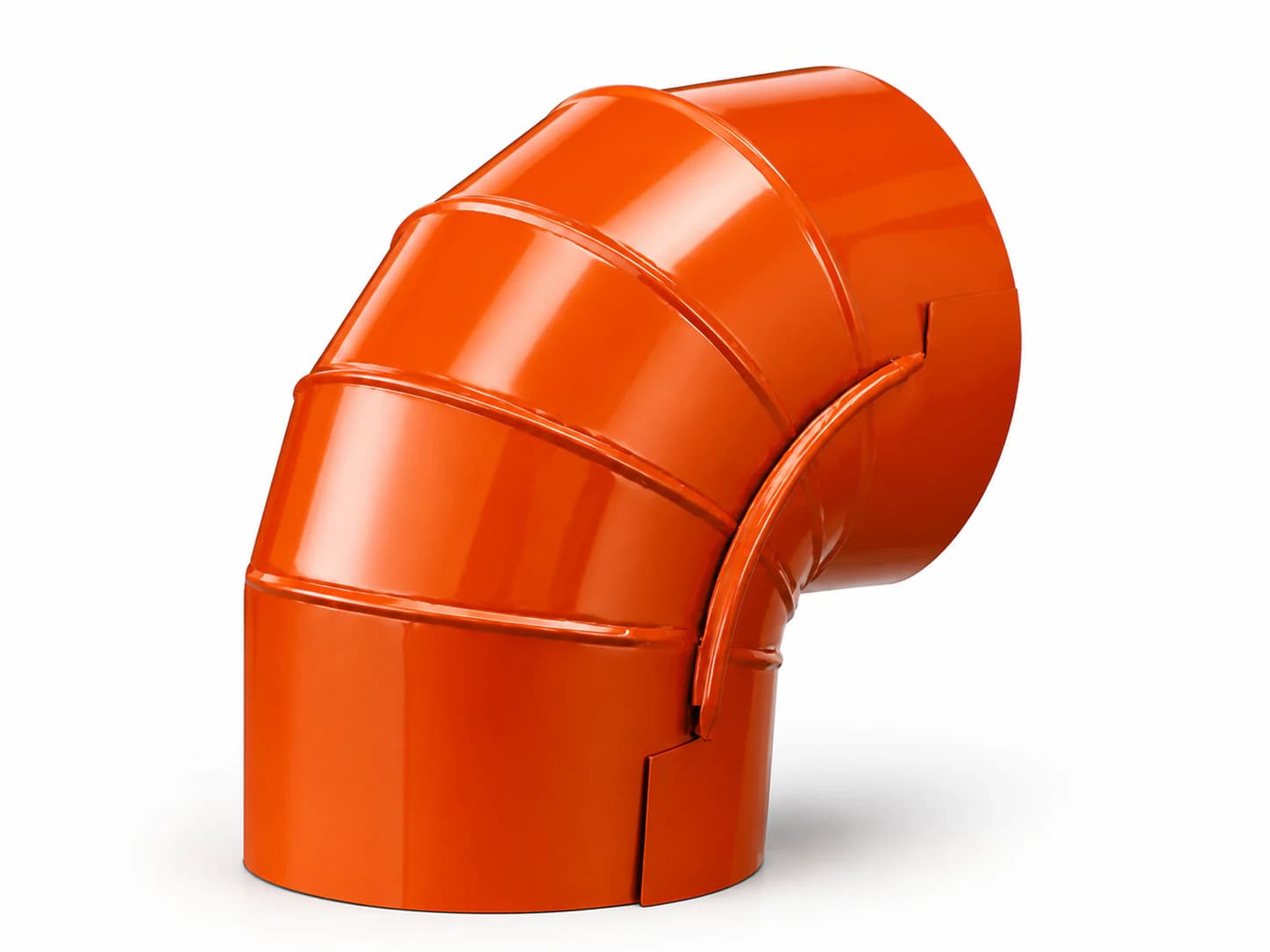

Elbow Cover – Colourbond
A two-piece cover for clean 90° and 45° changes of direction.
Start a product enquiry
See it in action
Elbow Cover – Colourbond assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview
Two-piece covers for insulated elbows.
Two-piece elbow covers enclose changes of direction in insulated pipework. Interlocking sections and stainless steel bands allow assembly without drilling or riveting, and removal for inspection and maintenance. Part of the ClickClad Colourbond pipe sheathing system, these covers fit over the pipe insulation.
Provide the elbow angle, pipe and insulation dimensions, and the measurements shown in the measurement guide. Confirm all dimensions before fabrication.
Product specifications
- Patent
- APA2013206315
- Material
- Colourbond
- Material thickness
- 0.3 mm
- Manufacture
- Fabricated to size
Typical sizing
- Standard range
- 15A–300A pipe sizes
- Insulation thickness
- 25–75 mm
- Minimum outside diameter
- 75 mm
For sizes or configurations beyond those listed, contact us to discuss your project requirements.
Elbow system

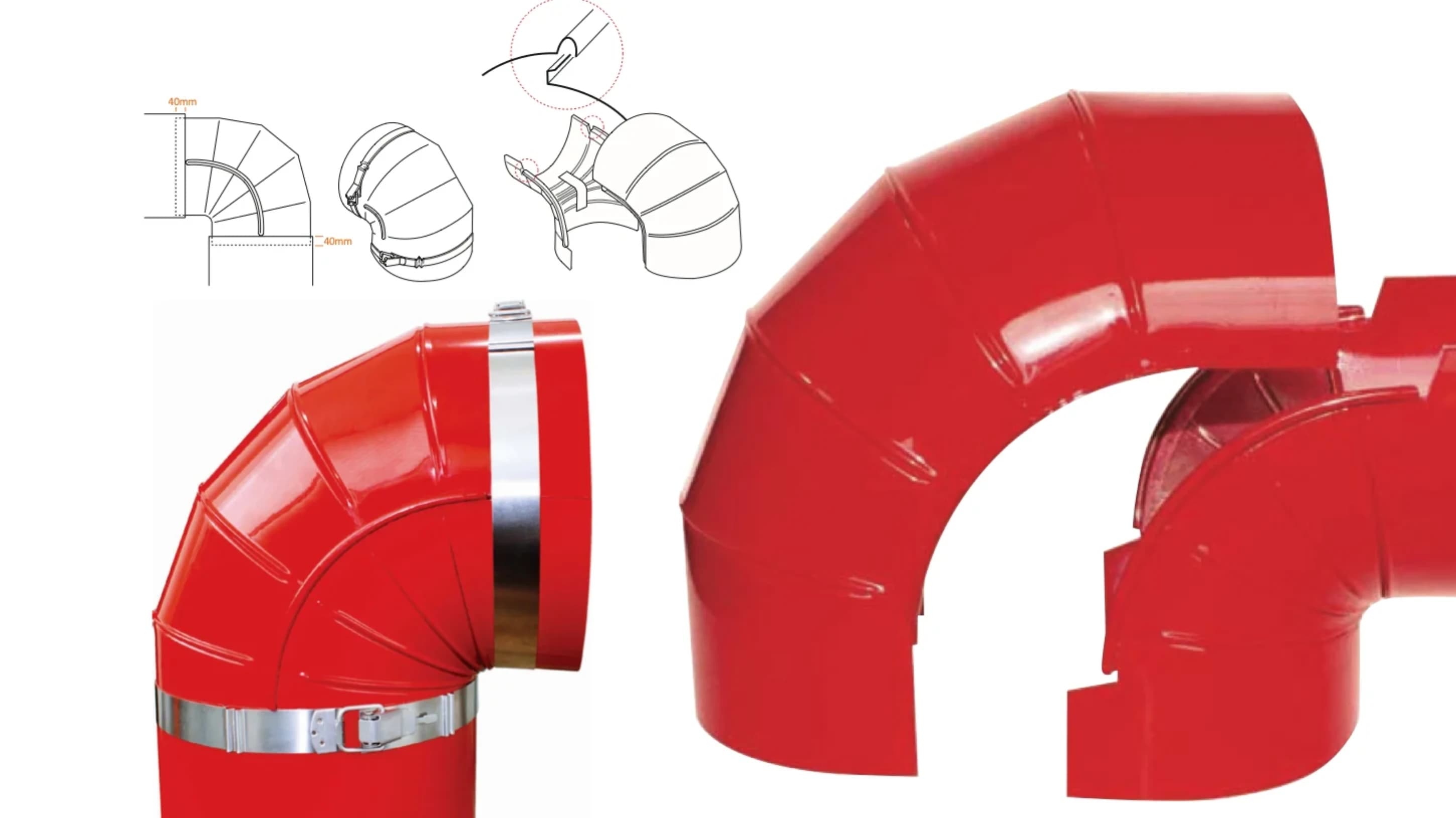

Two pieces. One clean turn.
The ClickClad elbow system uses a two-piece construction to form clean 90° and 45° turns around insulated pipework.

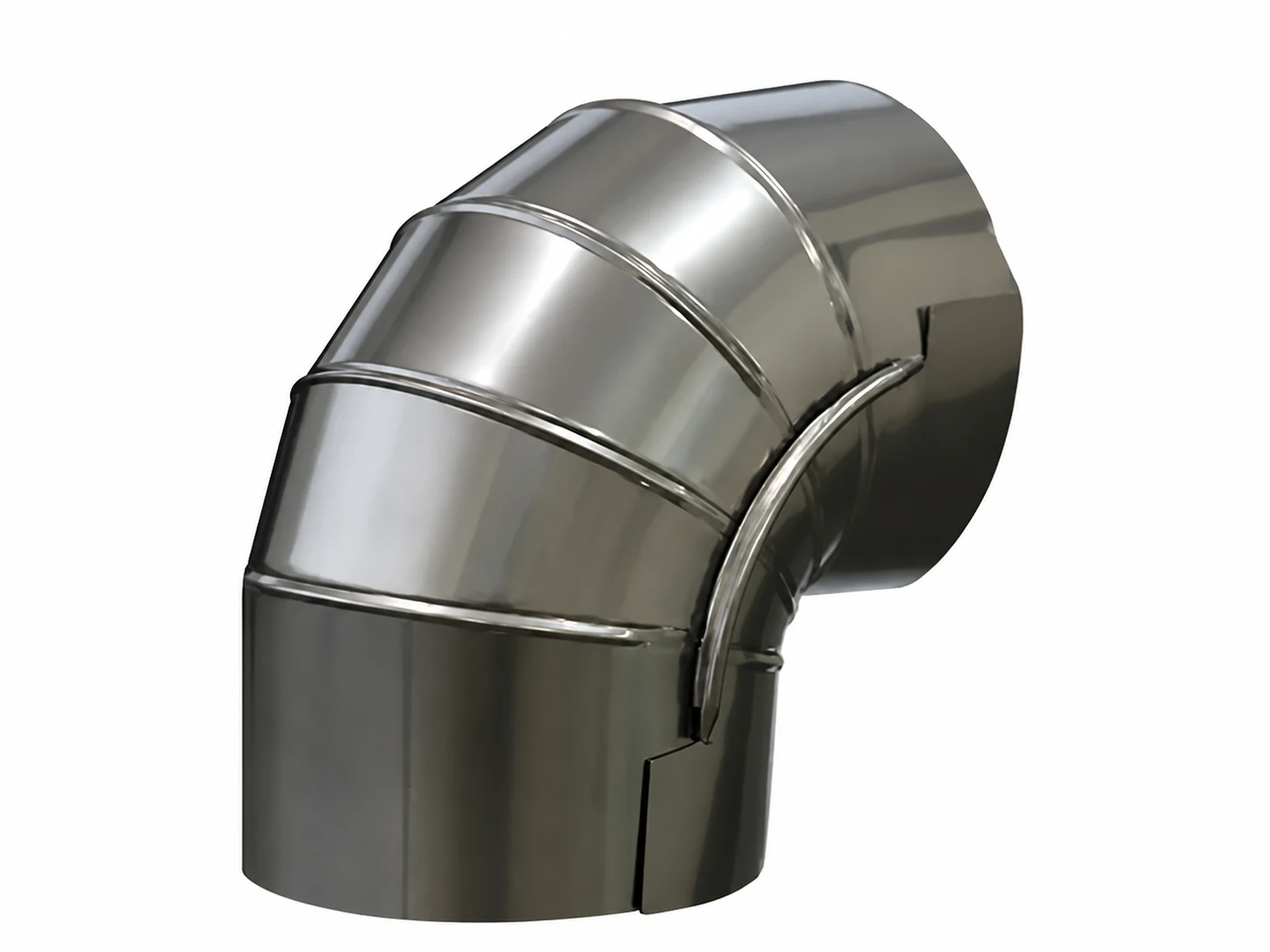

The interlocking system installs without drilling or riveting, reducing the risk of damaging the insulation below. It is available in 14 standard pipe sizes across aluminium, stainless steel and Colourbond finishes.
Installed example

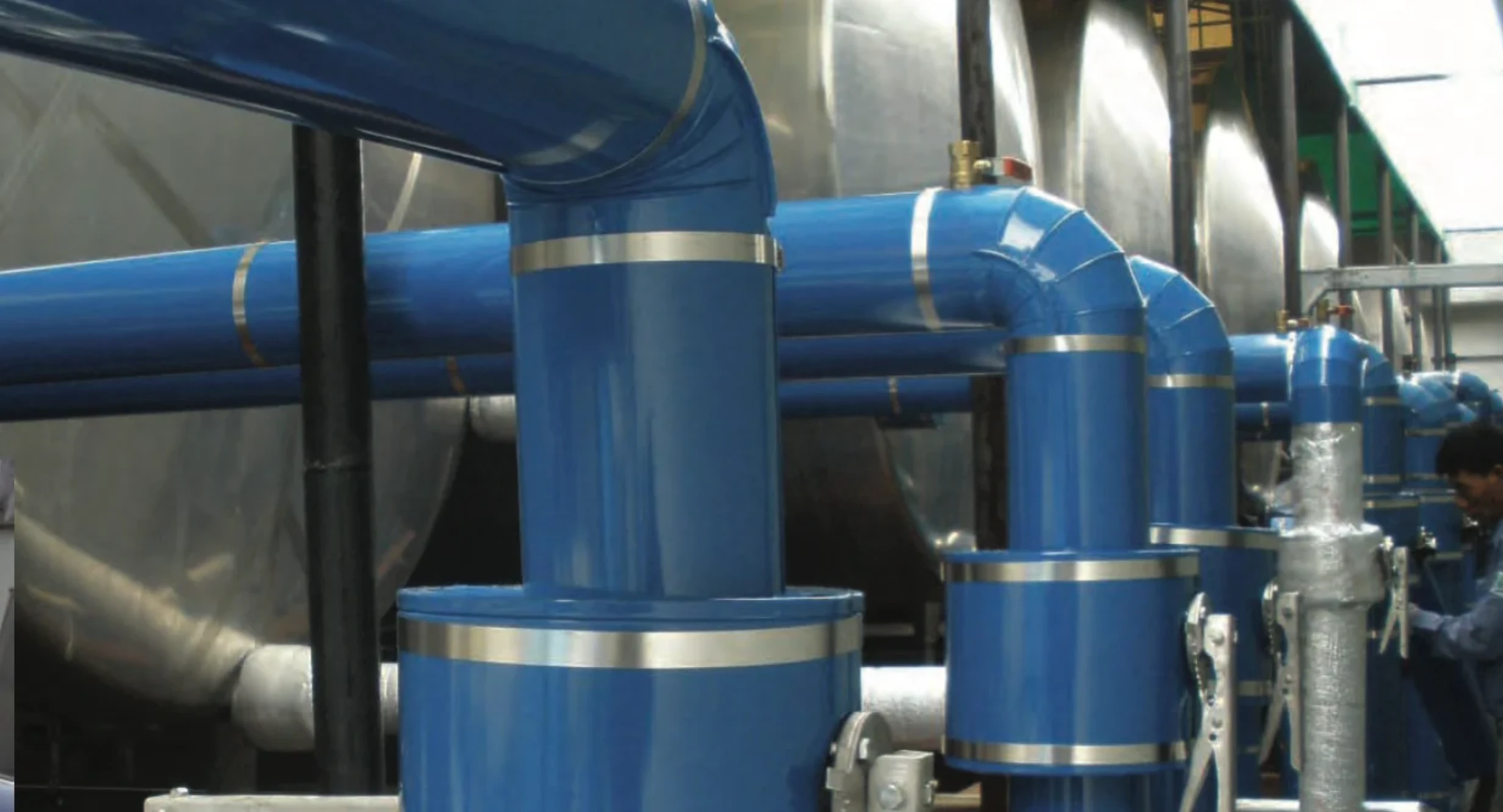

Installed elbow covers.
ClickClad Elbow Covers installed across an industrial pipe network, creating clean changes of direction with banded connections.
Colour options
Colour options for Colourbond cladding.
Select from the ClickClad colour range to coordinate your cladding with surrounding pipework.
Colour options are available for Colourbond cladding only. Aluminium and stainless steel are supplied in their natural metal finish.
On-screen colours are indicative only. Actual product colours may vary slightly.
- B00
- E00
- BE4
- B02
- N60
- NV3Matte finish
- EB4
- W21
- Y02
- G29
- O00
- R25
Metal finishes
Reference samples of natural metal surfaces. These are separate from the Colourbond colour range.
- GIGalvanised texture
- AL 1050Linear grain
- SUS 304LSmooth satin
- SUS MRMirror finish
Product resources
Product specifications and selection
Review the elbow covers section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
