Elbow Covers
Elbow Cover – Aluminium
A two-piece cover for clean 90° and 45° changes of direction.
Start a product enquiry
See it in action
Elbow Cover – Aluminium assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview
Two-piece covers for insulated elbows.
Two-piece elbow covers enclose changes of direction in insulated pipework. Interlocking sections and stainless steel bands allow assembly without drilling or riveting, and removal for inspection and maintenance.
Provide the elbow angle, pipe and insulation dimensions, and the measurements shown in the measurement guide. Confirm all dimensions before fabrication.
- Patent
- APA2013206315
- Material
- Aluminium
- Material thickness
- 0.5 mm
- Standard range
- 15A–300A pipe sizes
- Insulation thickness
- 25–75 mm
- Minimum outside diameter
- 75 mm
- Manufacture
- Fabricated to size
Elbow system
Two pieces. One clean turn.

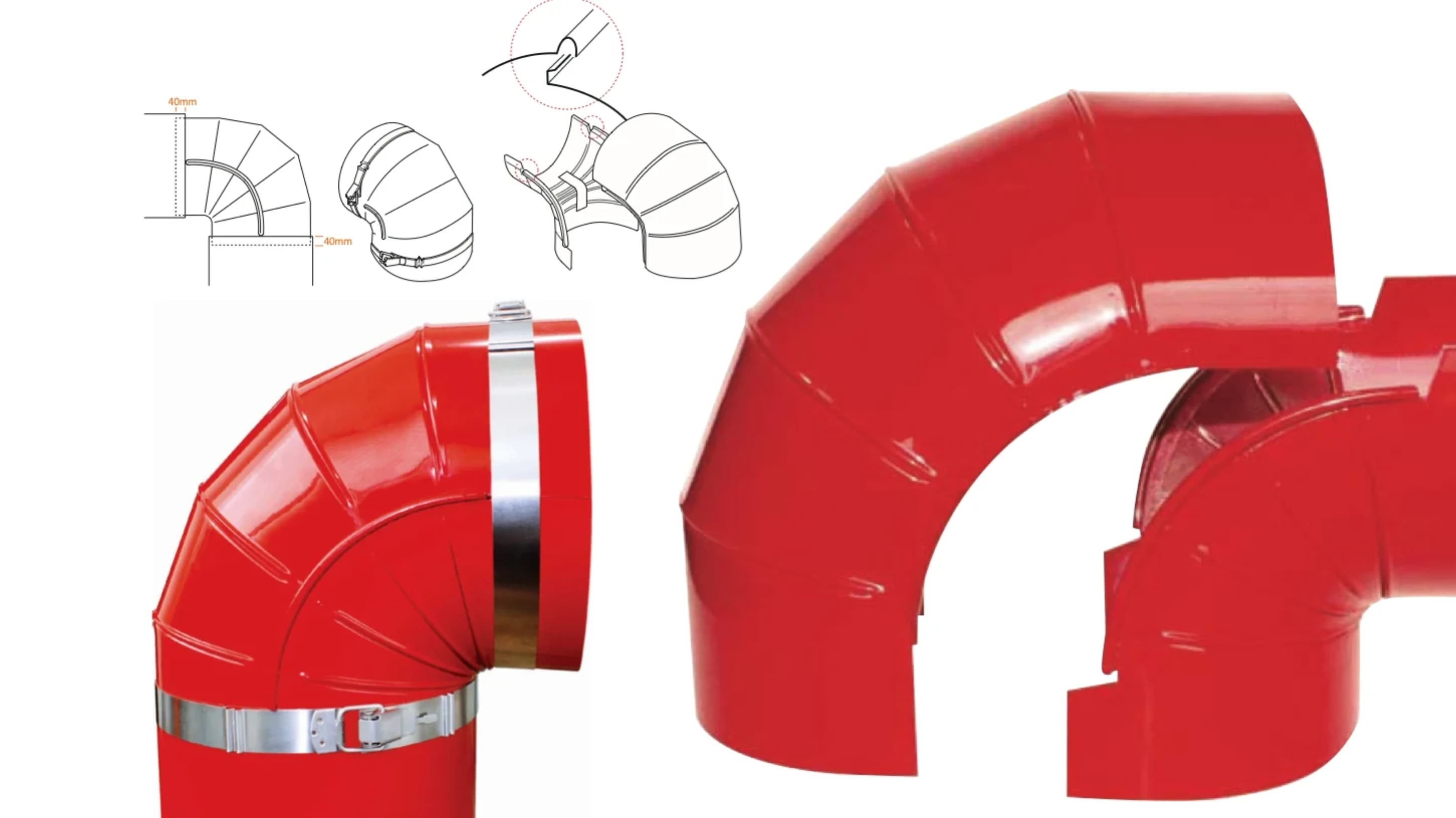

The ClickClad elbow system uses a two-piece construction to form clean 90° and 45° turns around insulated pipework.

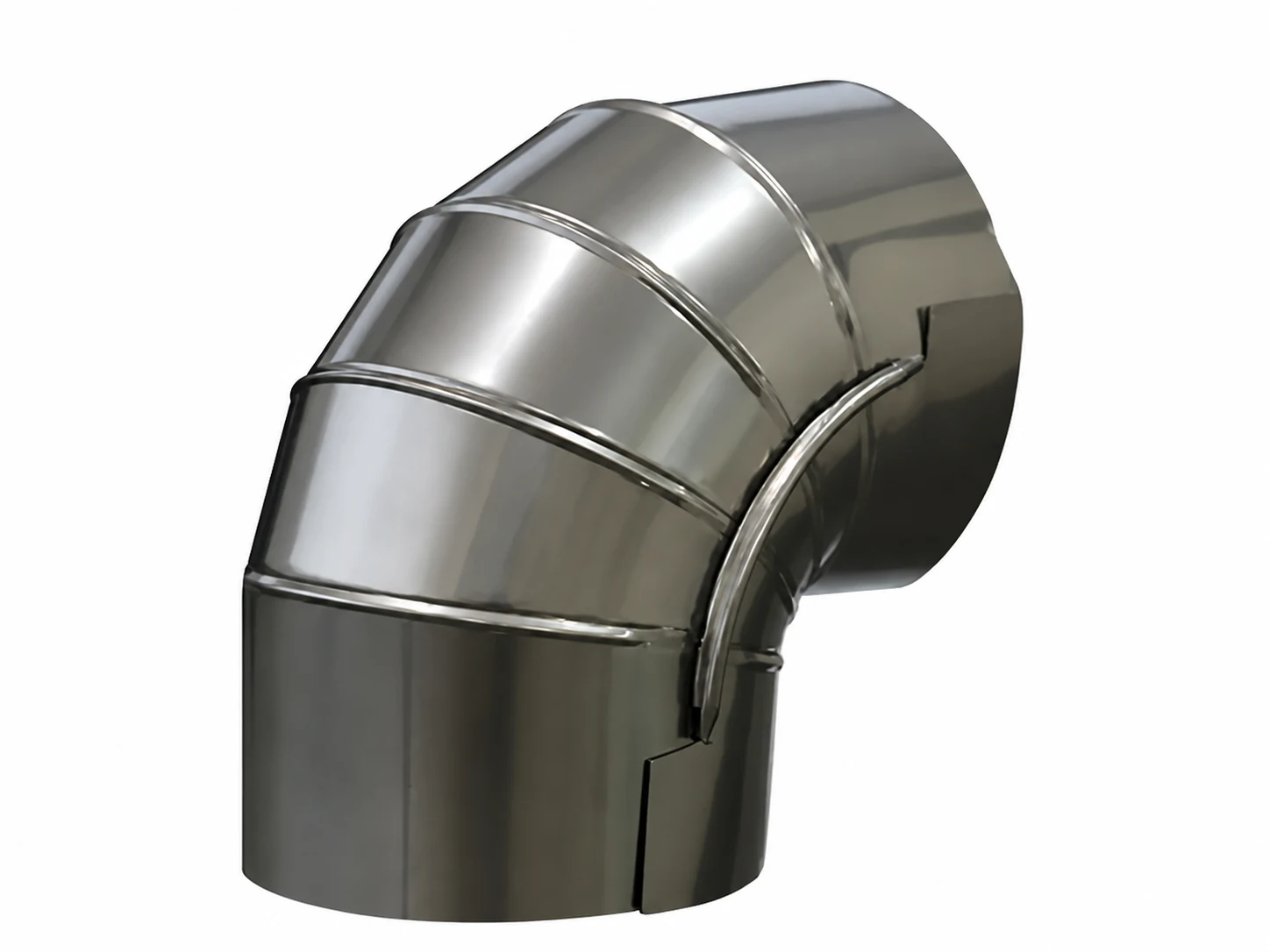

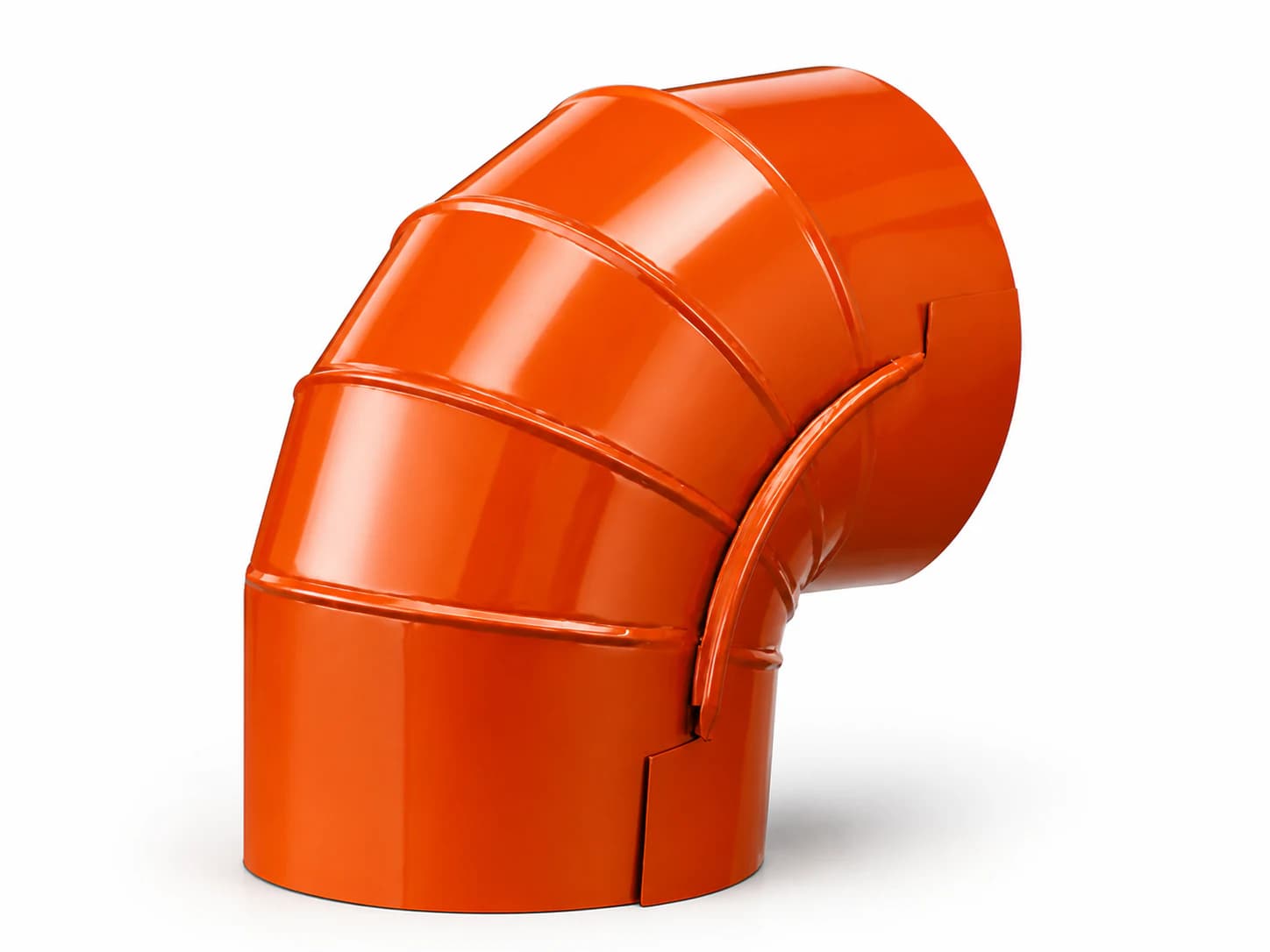

The interlocking system installs without drilling or riveting, reducing the risk of damaging the insulation below. It is available in 14 standard pipe sizes across aluminium, stainless steel and Colourbond finishes.
Installed example

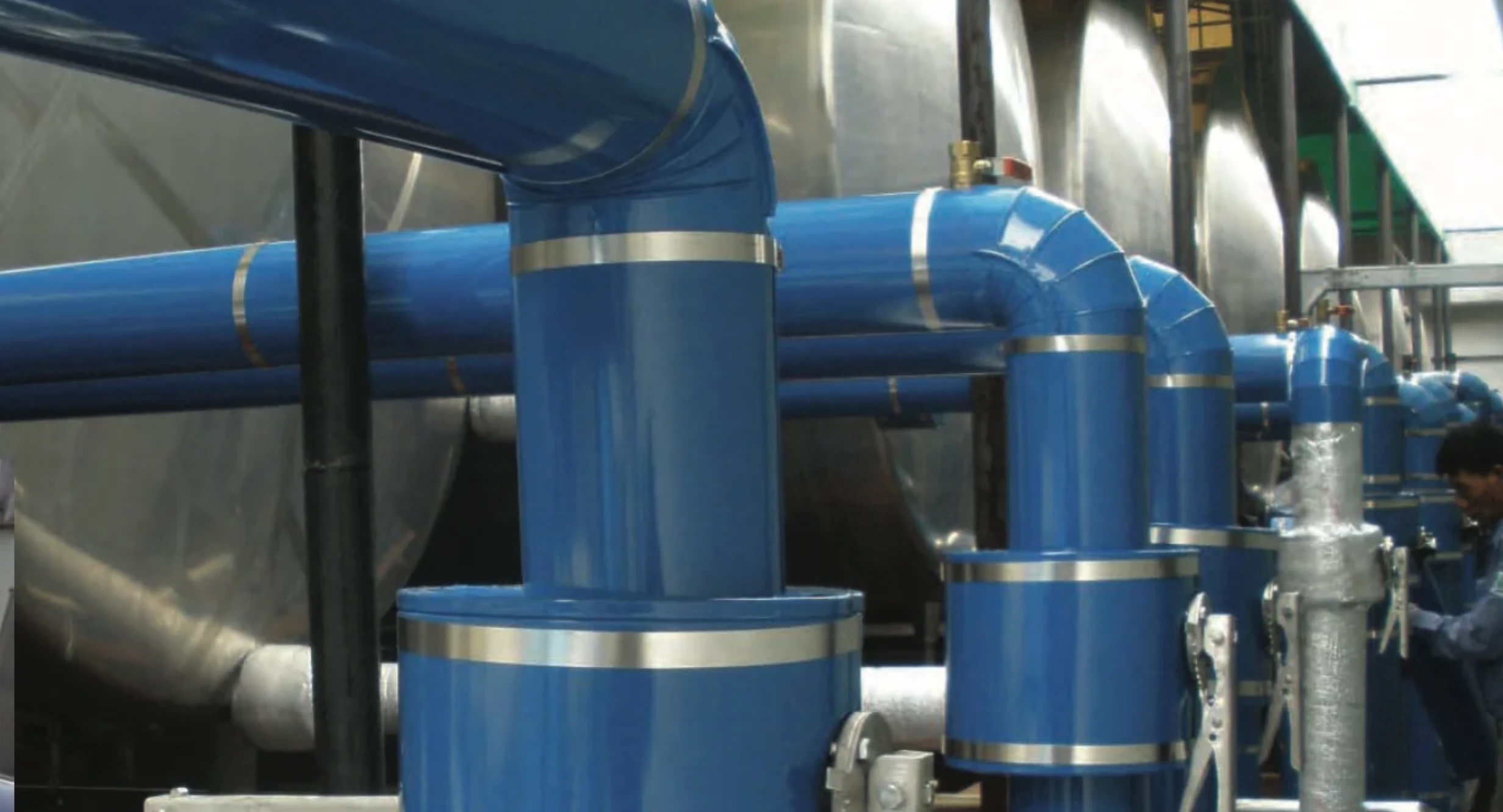

Installed elbow covers.
ClickClad Elbow Covers installed across an industrial pipe network, creating clean changes of direction with banded connections.
Product resources
Product specifications and selection
Review the elbow covers section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
