ClickClad product enquiry

Tell us what your project needs.

Add your products, quantities, pipe and insulation dimensions, and any drawings or photos. Our team will review your requirements. Your draft is saved in this browser.

Before you measure

Measurements for an accurate fit.

Use millimetres unless a field says otherwise. Accurate finished dimensions are required for fabrication.

Open full measurement guidePDF · 408 KB ↗

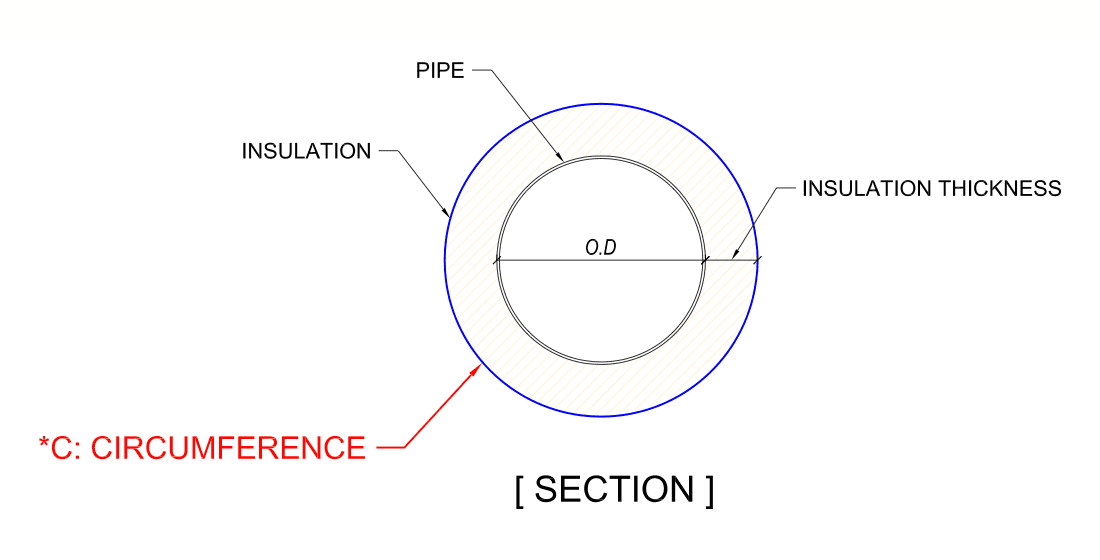

Pipe, insulation, outside diameter and circumference measurement diagram

01 / Pipe

Pipe OD + insulation

Enter pipe type, outside diameter, insulation type and wall thickness. If already insulated, measure the total outside circumference.

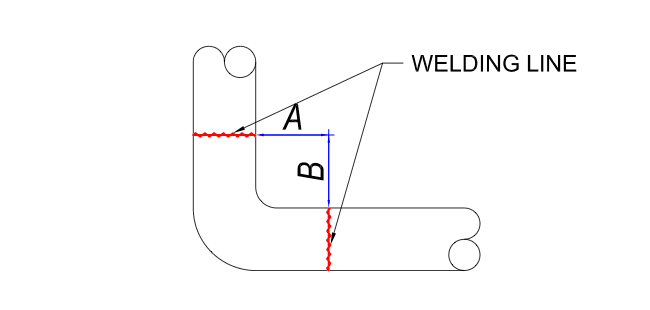

Elbow welding line and A and B radius measurement diagram

02 / Elbow

R = smaller of A and B

For steel, measure from the weld lines. For copper, measure from the inner connection lines. Supply both values and we calculate the smaller radius.

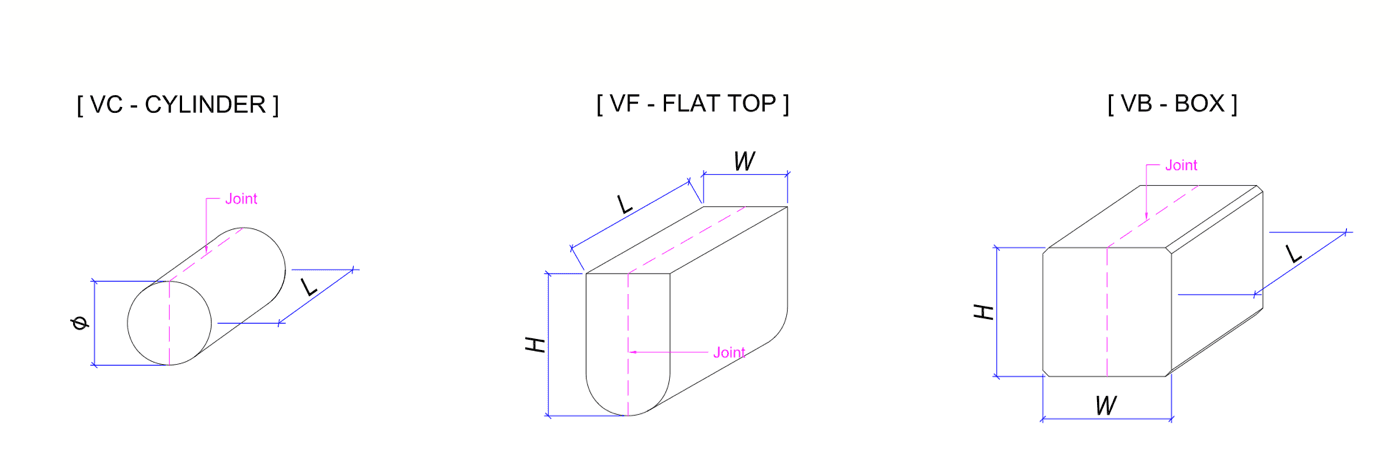

Cylinder, flat top and box valve cover measurement diagrams

03 / Valve cover

Shape + W × H × L

Choose Cylinder, Flat Top or Box, then measure the equipment. Allow 15–25 mm clearance and note handles, walls, accessories and other obstructions.

Minimum finished diameter: 75 mm

Project + contact

Who should we contact?

Tell us who can answer questions about the pipe and insulation schedule.

Project nameCompanyFirst nameLast nameEmailPhone

Enquiry schedule

List what you need.

Add one row for each product and size. Include the material, pipe and insulation details, quantity and unit. Enter straight tube lengths in millimetres.

No.	Product	Description	Length mm · straight tube	Cladding material	Material detail grade / thickness	Options colour / valve shape	Pipe type	Pipe OD mm	Insulation type	Insulation thickness mm	Q’ty	U/M	Row actions
01					0.37 mm	N/A

Standard cladding: Aluminium 0.37 mm; Stainless Steel 304, 0.3 mm.
Other stainless specifications: Please include the required grade and thickness in the Description or enquiry notes.
Tee Covers: If the run and branch diameters differ, enter each diameter in the Description.
Straight Tube: Enter the required length in millimetres for each line; each metre requires 3 bands.
Minimum finished diameter: 75 mm.

Location + timing

Where is the project?

Optional context for freight and lead-time guidance. Final delivery details can be confirmed later.

Project / installation locationRequired byIndicative date, subject to confirmation

Files + notes

Add the details that dimensions cannot show.

CAD drawings, marked-up plans and site photos are stored with the draft in this browser.

+Add drawings, schedules or site photosPDF, DWG, DXF, Excel or image files · 25 MB total · 12 files maximumEnquiry notesNon-standard fabrication, labelling or anything not shown in the schedule

1 enquiry item0 supporting files saved

Prefer to complete the schedule offline?

Download Enquiry Form
