ClickClad Elbows and Radius

90 Elbow Cover Before Insilation : R – Value

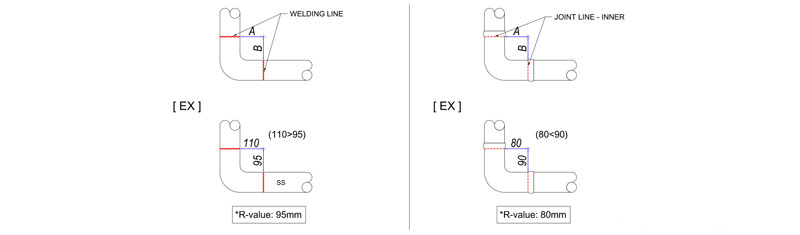

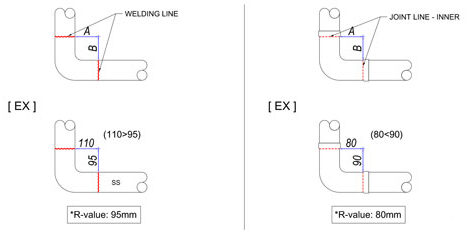

• R-value of ClickClad 90 degree elbow cover is the smaller length between A and B
• Steel or Stainless Steel Pipe: please measure the welding lines, horizontal and vertical length, the smaller length is the R-value of 90 degree elbow cover.
• Copper Pipe: please measure the inner connection lines, horizontal and vertical length, the smaller length is the R-value of 90 degree elbow cover.
