Tee Covers

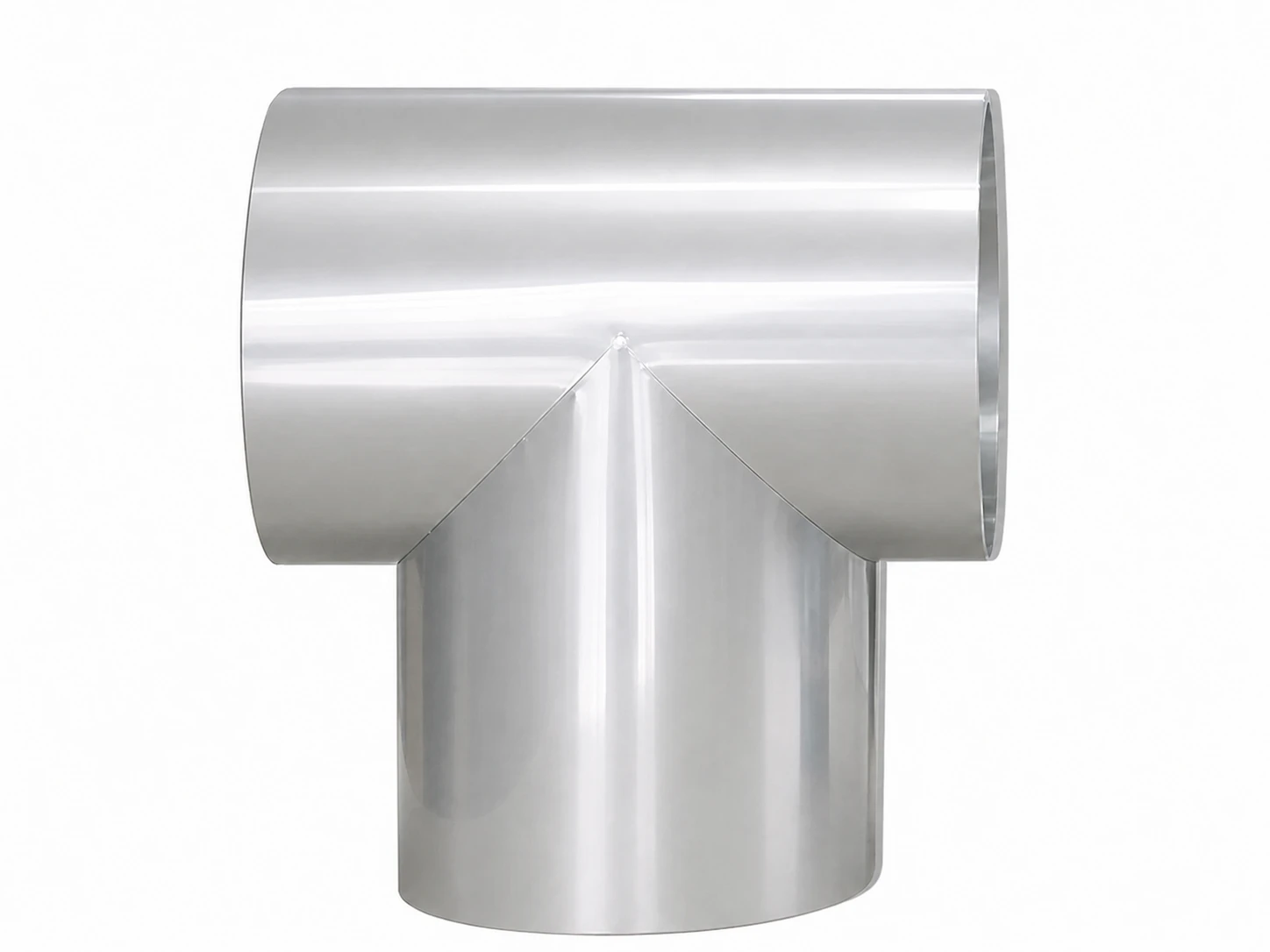

Tee Cover – Aluminium
Made-to-measure protection for insulated pipe intersections.
Start a product enquiry
See it in action
Tee Cover – Aluminium assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview
Fabricated covers for pipe junctions.
Two-piece tee covers are fabricated to fit junctions between insulated pipe runs. Interlocking joints and stainless steel bands secure the covers without drilling or riveting and allow removal for maintenance access.
Provide the pipe and insulation dimensions for each branch, with a drawing of the junction. Confirm all dimensions before fabrication.
- Patent
- APA2013206315
- Material
- Aluminium
- Material thickness
- 0.5 mm
- Standard range
- 15A–300A pipe sizes
- Insulation thickness
- 25–75 mm
- Minimum outside diameter
- 75 mm
- Manufacture
- Fabricated to size
Tee system
Built around the intersection.
ClickClad Tee Covers form a clean, prefabricated junction wherever insulated pipe runs intersect, including connections between different pipe sizes.

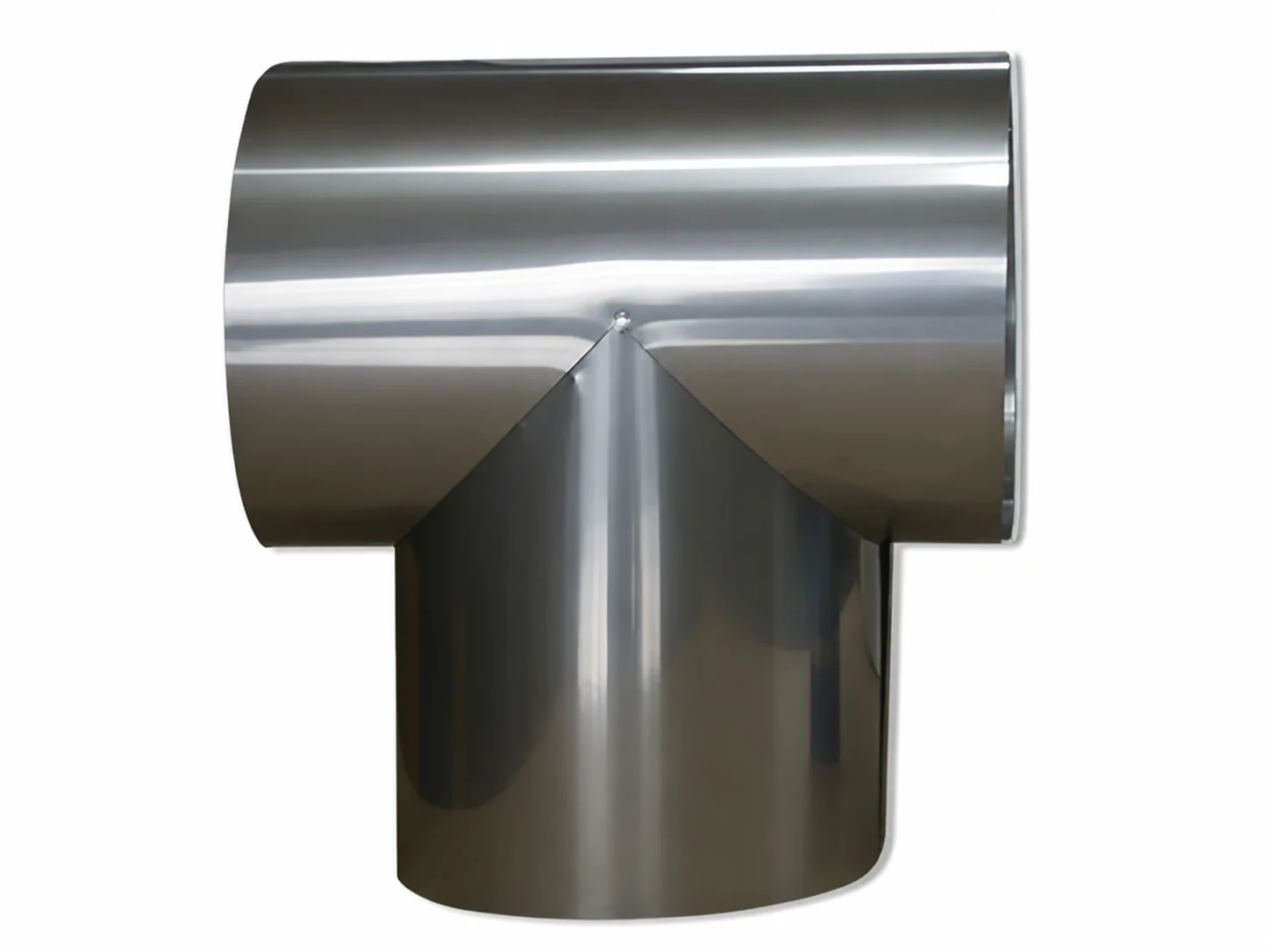

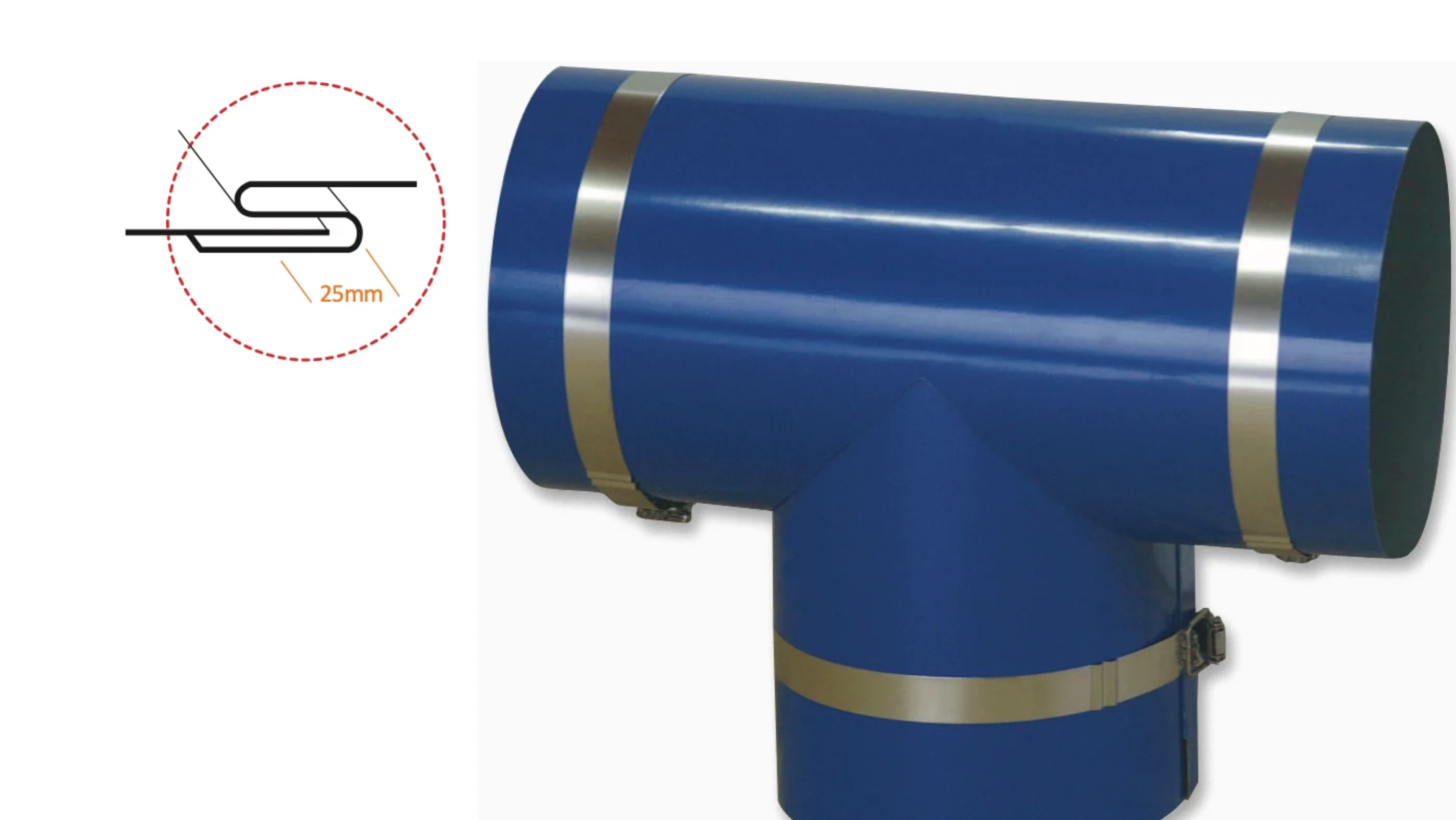

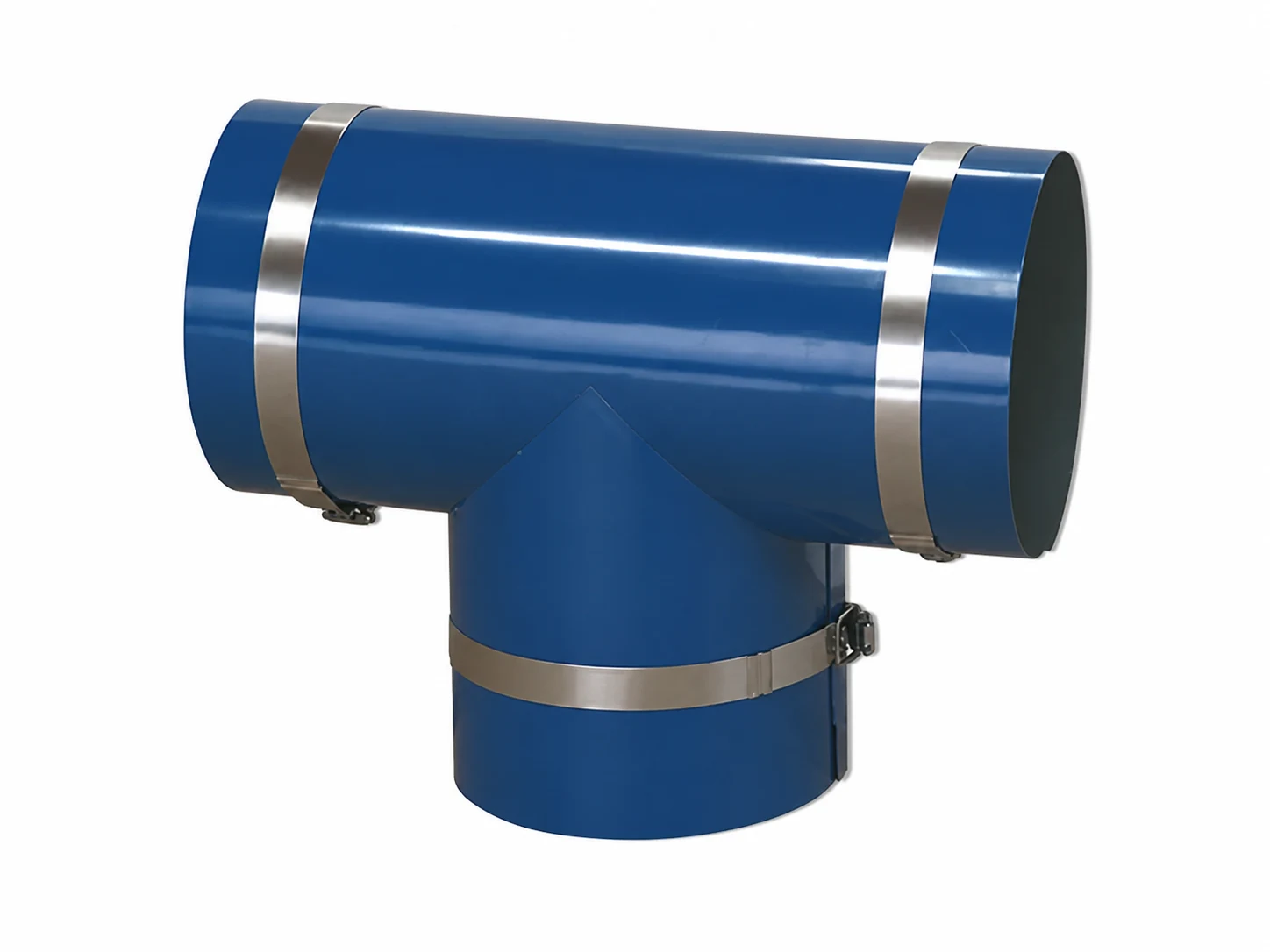

The 25 mm interlocking joint brings the two-piece cover together without drilling or riveting, helping protect the insulation below. Covers are fabricated to size across the standard range in aluminium, stainless steel and Colourbond finishes.

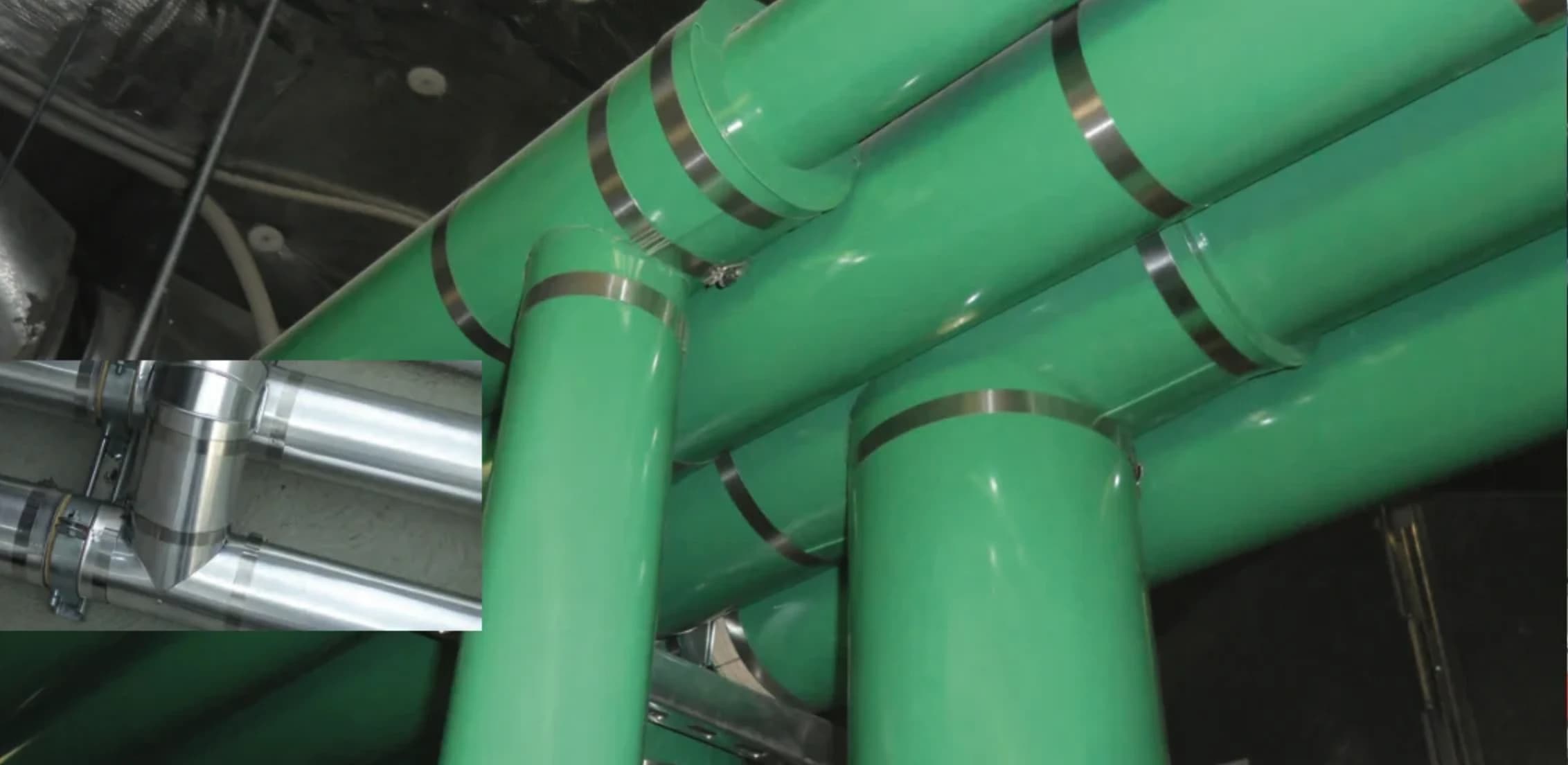

Installed example
Installed tee covers.
Installed ClickClad Tee Covers form neat, protected intersections across parallel insulated pipe runs.
Product resources
Product specifications and selection
Review the tee covers section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
