Straight Tubes

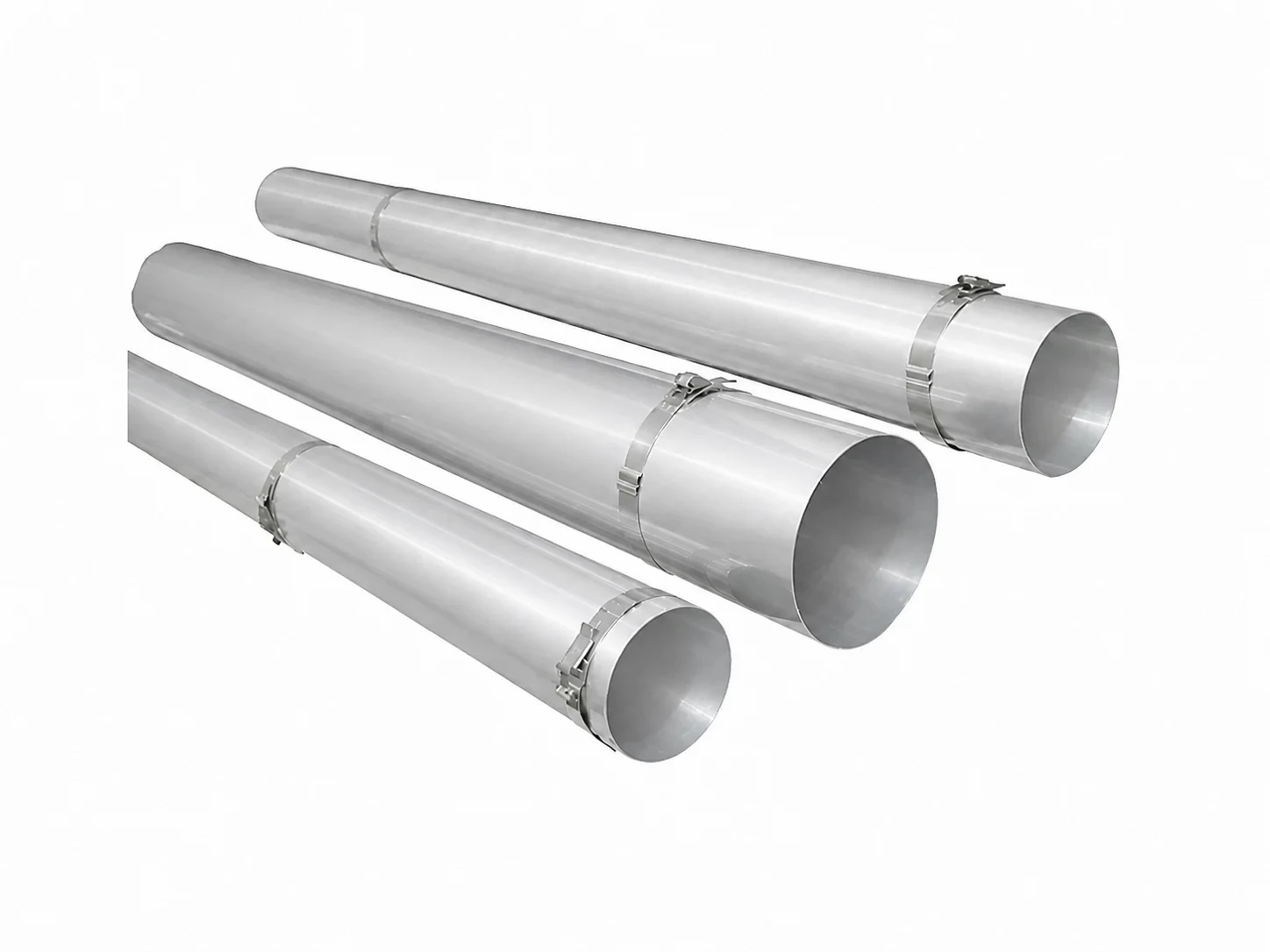

Straight Tube – Aluminium
Removable metal cladding for straight insulated pipe runs.
Start a product enquiry
See it in action
Straight Tube – Aluminium assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview
Hook-joint cladding for straight pipe runs.
Straight tubes cover insulated pipe runs using a hook joint with up to 40 mm overlap. Stainless steel bands secure the sections and can be released to remove and refit the cladding.
Provide pipe and insulation dimensions, required lengths and quantities. Confirm all dimensions before fabrication.
- Patent
- APA2013206315
- Material
- Aluminium
- Material thickness
- 0.37 mm
- Standard range
- 15A–300A pipe sizes
- Insulation thickness
- 25–75 mm
- Minimum outside diameter
- 75 mm
- Manufacture
- Standard lengths
- Standard length
- 1,000 mm

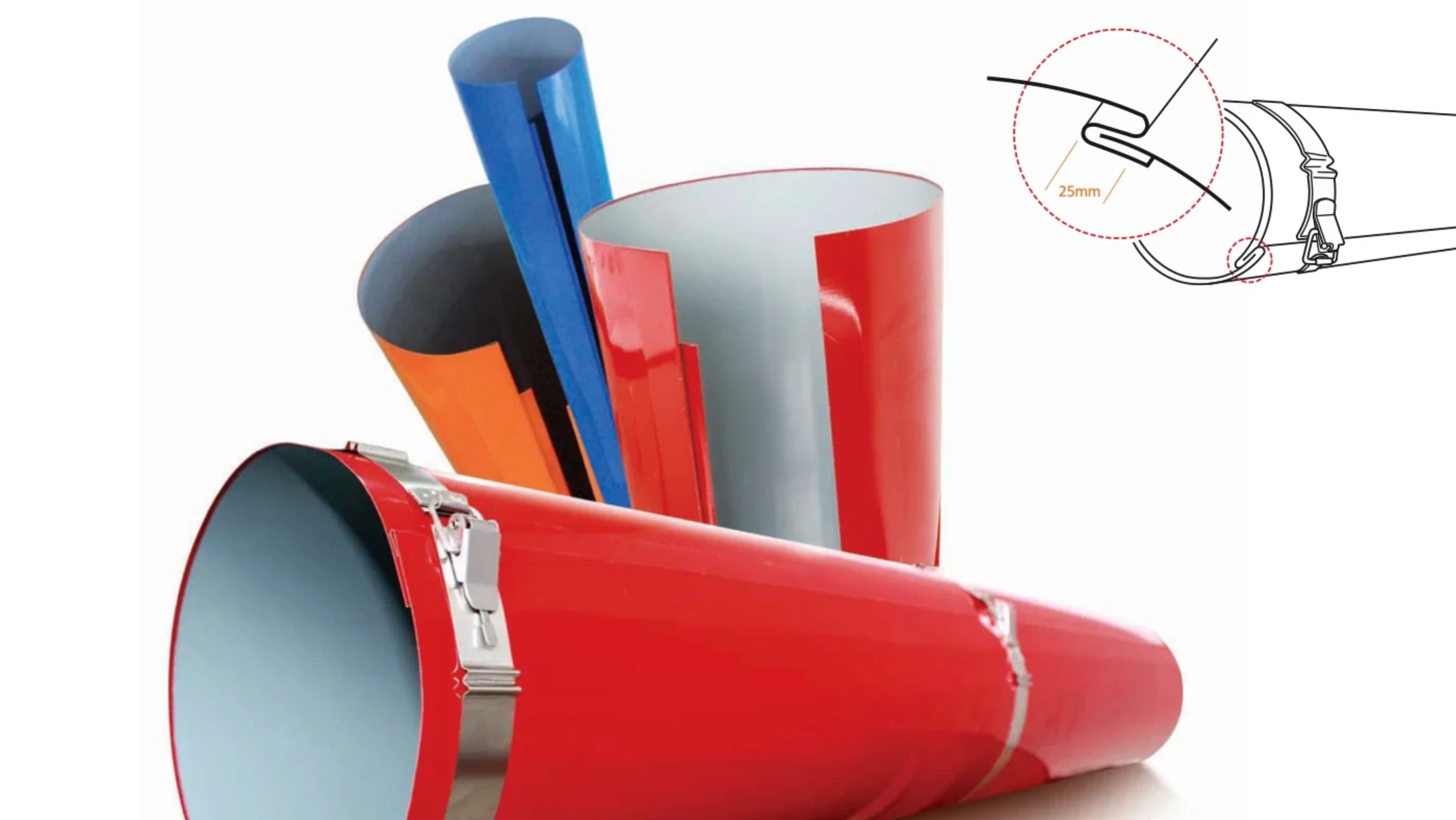

Straight tube system
Hook joints and removable bands.
ClickClad Straight Tubes combine a hook-joint profile with stainless steel bands to create a secure, removable covering across long insulated pipe runs.

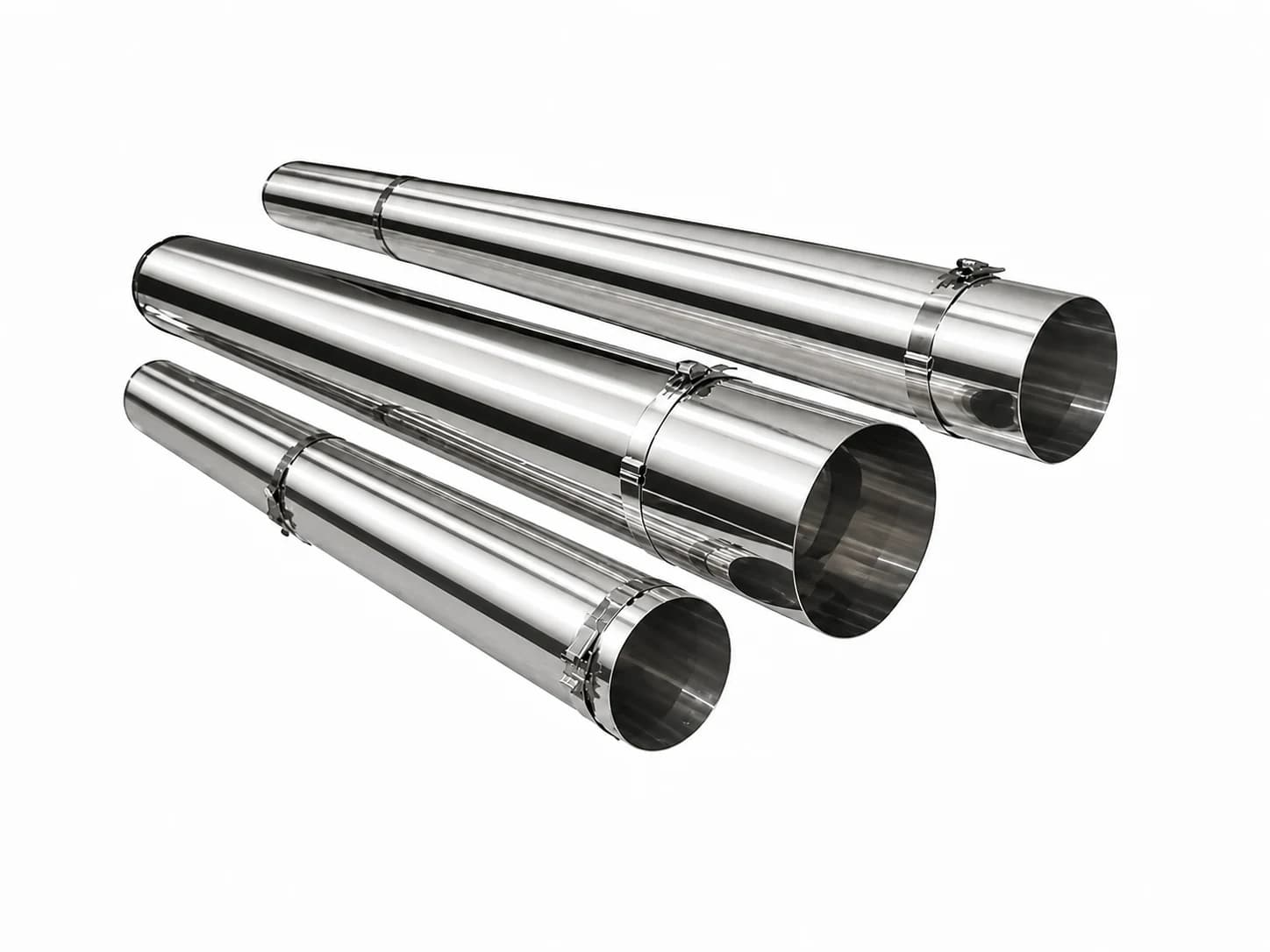

The hook joint can overlap by up to 40 mm, while the band clipping system allows each section to be assembled and removed without drilling or riveting. The standard range is available in aluminium, stainless steel and Colourbond finishes.

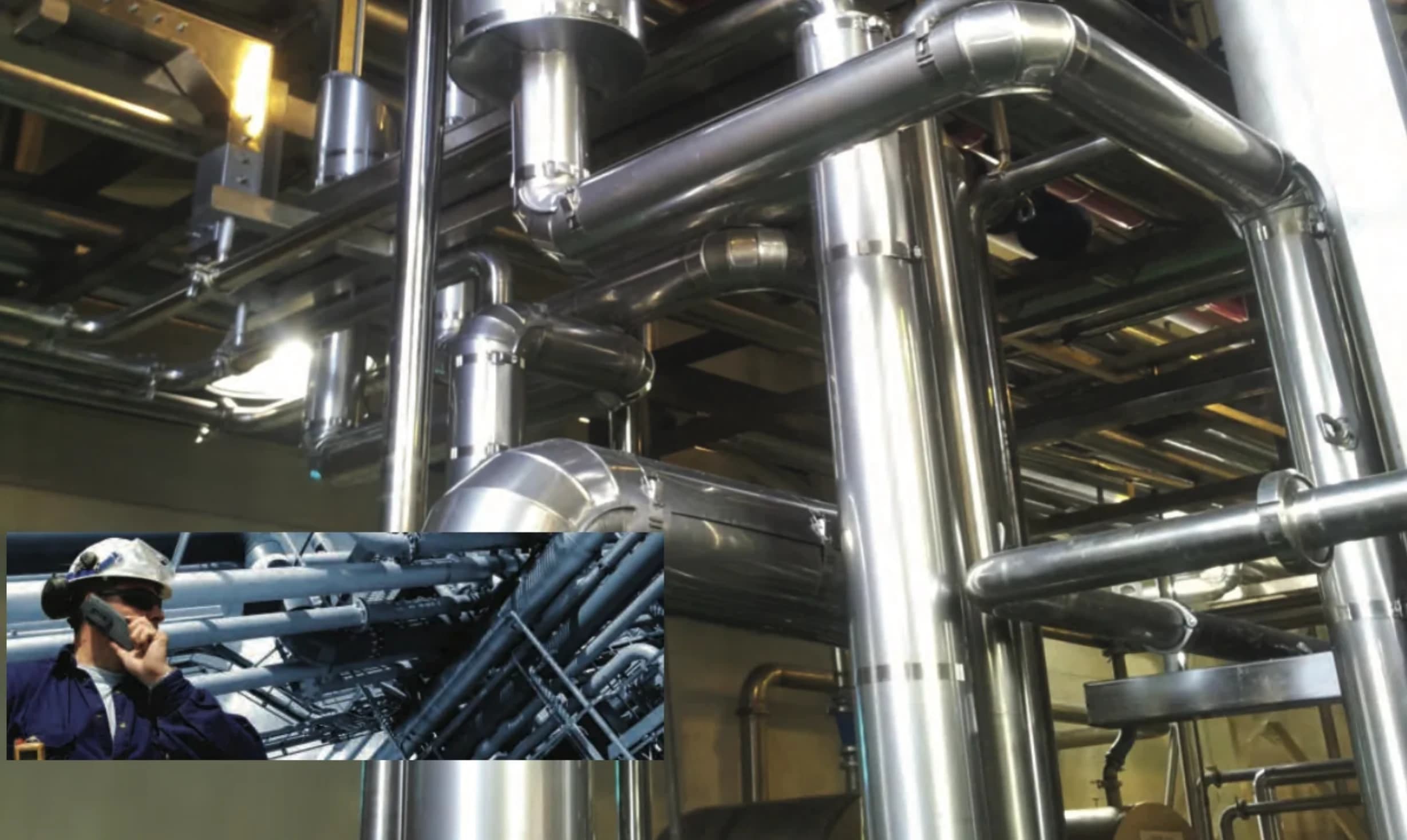

Installed example
Installed straight tubes.
Installed ClickClad Straight Tubes create continuous protective cladding throughout complex industrial pipework.
Product resources
Product specifications and selection
Review the straight tubes section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
