Bands
Stainless Steel Band
The reusable fastening band at the centre of the ClickClad system.
Start a product enquiry
See it in action
Stainless Steel Band assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview

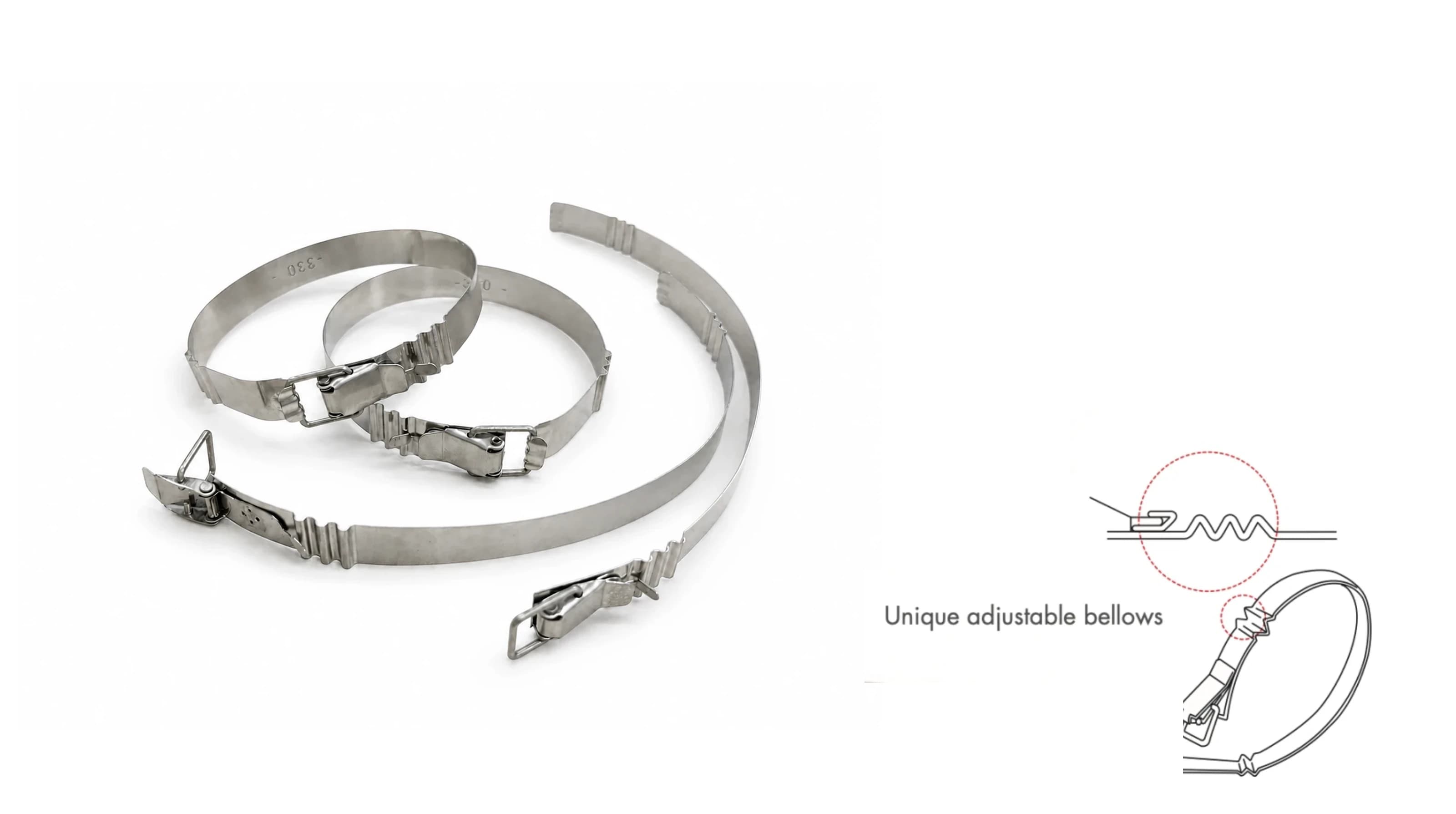

Reusable bands with expansion bellows.
ClickClad’s 304 stainless steel band clipping system uses expansion bellows and a locking mechanism to provide flexibility while maintaining strength around the cladding.
Provide the required band size, width and quantity with the pipe and insulation dimensions. Confirm all dimensions before fabrication.
- Patent
- APA2013206315
- Material
- 304 stainless steel
- Thickness
- 0.3 mm
- Band widths
- 16 mm and 19 mm
- Standard range
- 14 standard pipe sizes
- Feature
- Unique adjustable bellows
- Mechanism
- Locking mechanism
Band system
Flexibility built into the connection.
ClickClad’s stainless steel band clipping system makes light work of pipe-covering installation and requires minimal tools.
The expansion bellows provide flexibility while the unique locking mechanism maintains strength against external shocks. Made from 304 stainless steel, the bands help protect the insulated system against heat loss and water ingress.

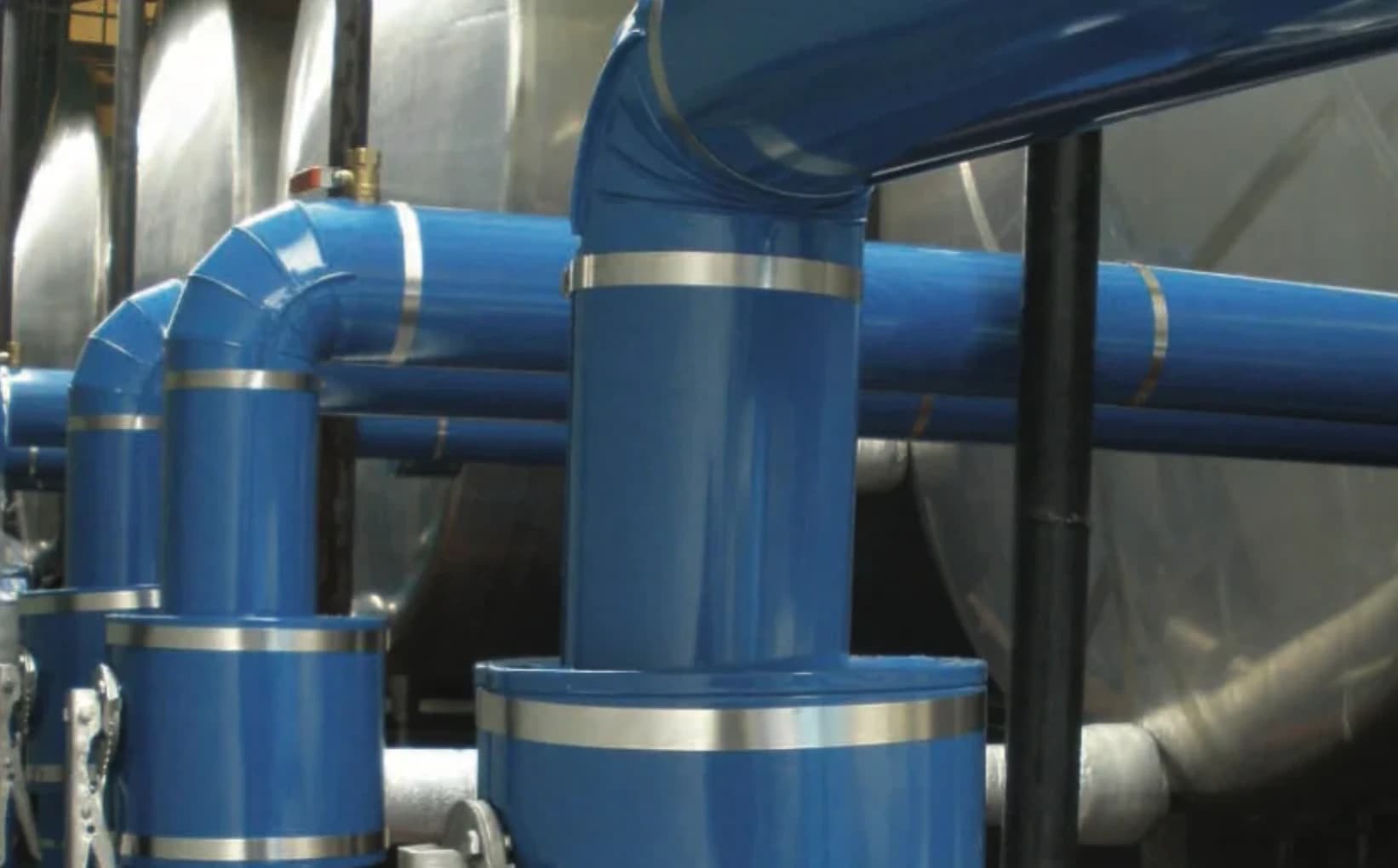

Installed example
Installed stainless steel bands.
Installed stainless steel bands secure ClickClad components across straight runs, elbows and valve covers in an industrial plant.
Product resources
Product specifications and selection
Review the bands section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
