End Caps

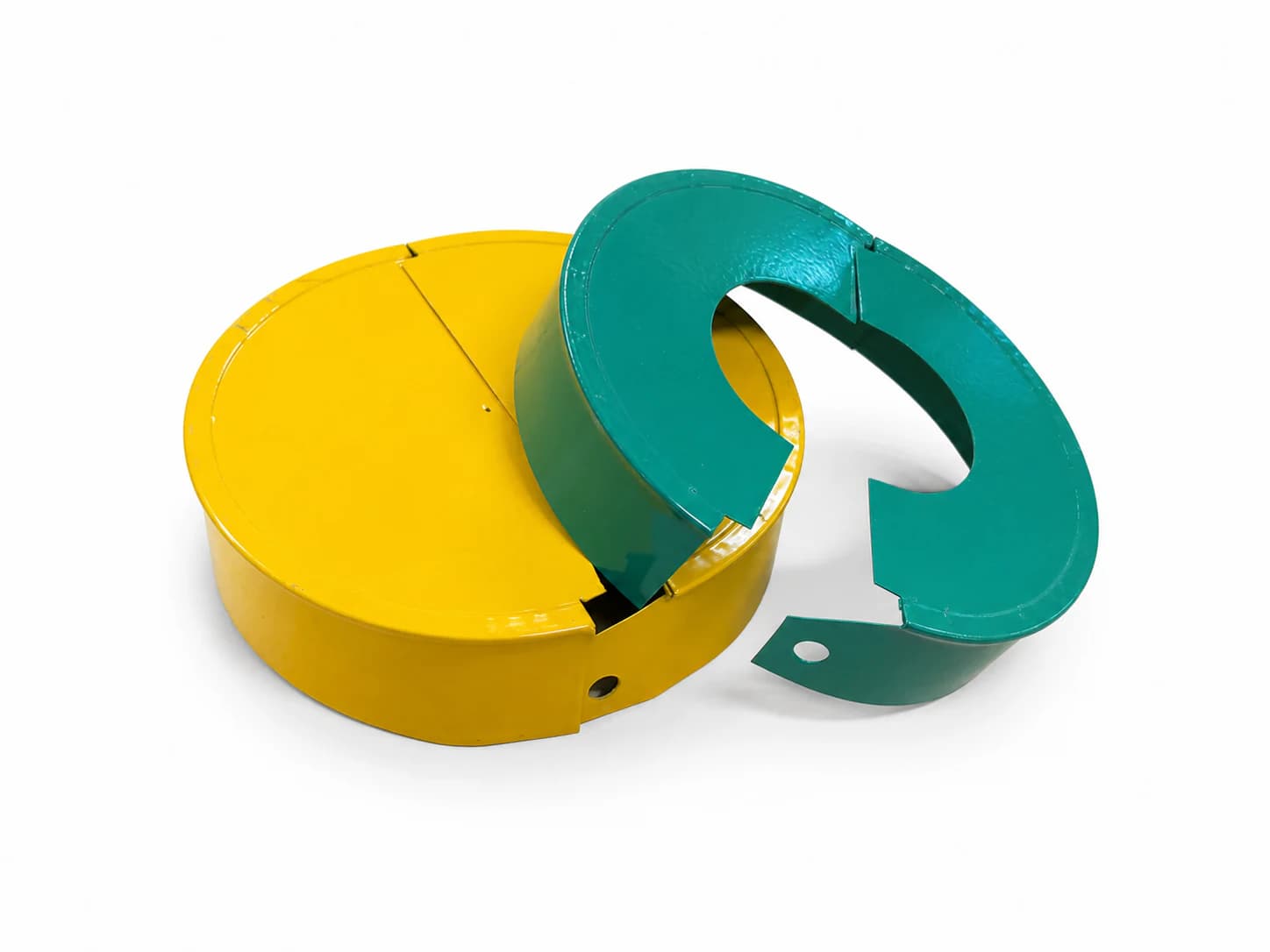

End Cap – Colourbond
Prefabricated components for cladding terminations and reducers.
Start a product enquiry
See it in action
End Cap – Colourbond assembly
A short demonstration of how this ClickClad component fits, secures and provides access around insulated pipework.
Watch the full demonstrationProduct overview
Cladding terminations and reducers.
End caps finish the cladding at the end of an insulated pipe run. The component can also be configured as a reducer between different outside diameters. Part of the ClickClad Colourbond pipe sheathing system, these covers fit over the pipe insulation.
Provide the pipe and insulation dimensions and a drawing of the termination or change in diameter. Confirm all dimensions before fabrication.
Product specifications
- Patent
- APA2013206315
- Material
- Colourbond
- Material thickness
- 0.3 mm
- Manufacture
- Fabricated to size
Typical sizing
- Standard range
- 15A–300A pipe sizes
- Insulation thickness
- 25–75 mm
- Minimum outside diameter
- 75 mm
For sizes or configurations beyond those listed, contact us to discuss your project requirements.

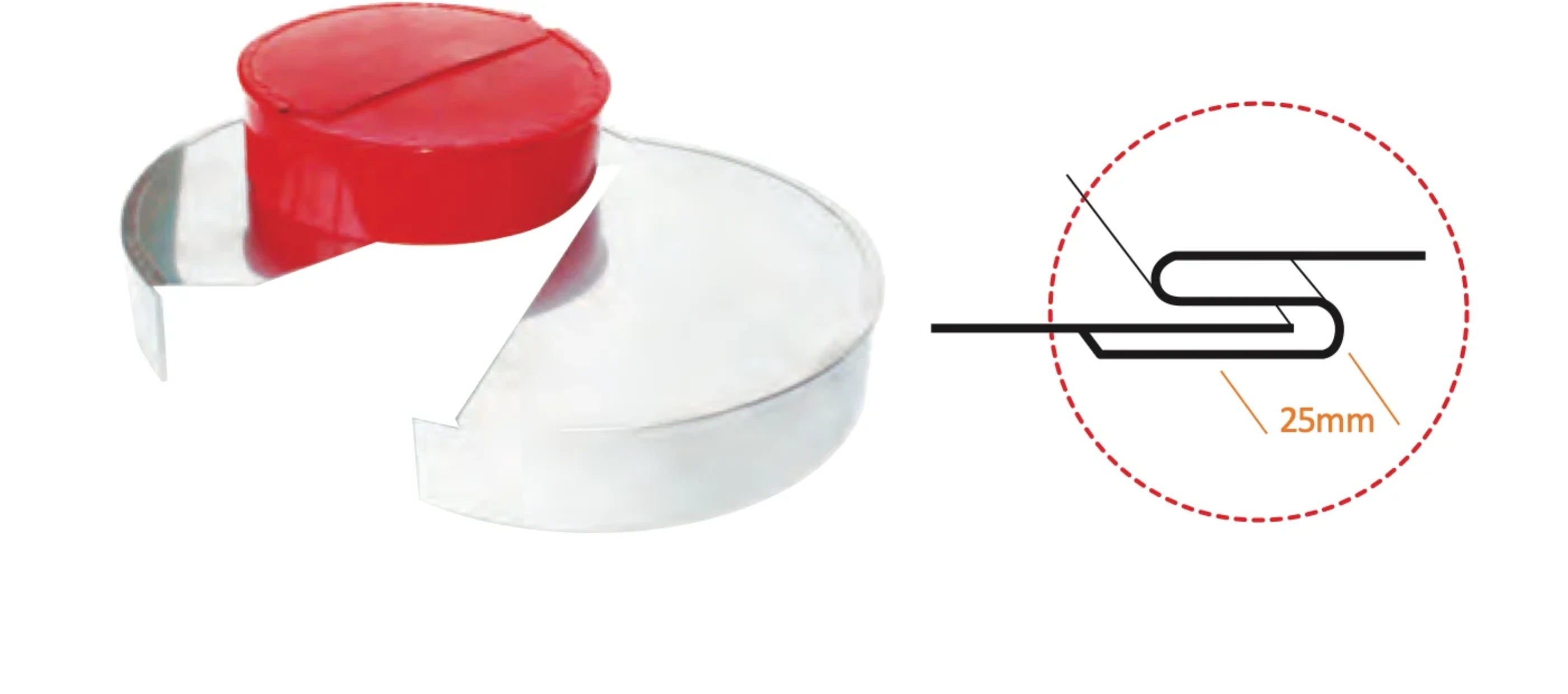

End cap system
A precise finish at every endpoint.
ClickClad End Caps provide a clean, prefabricated finish wherever an insulated pipe run terminates.

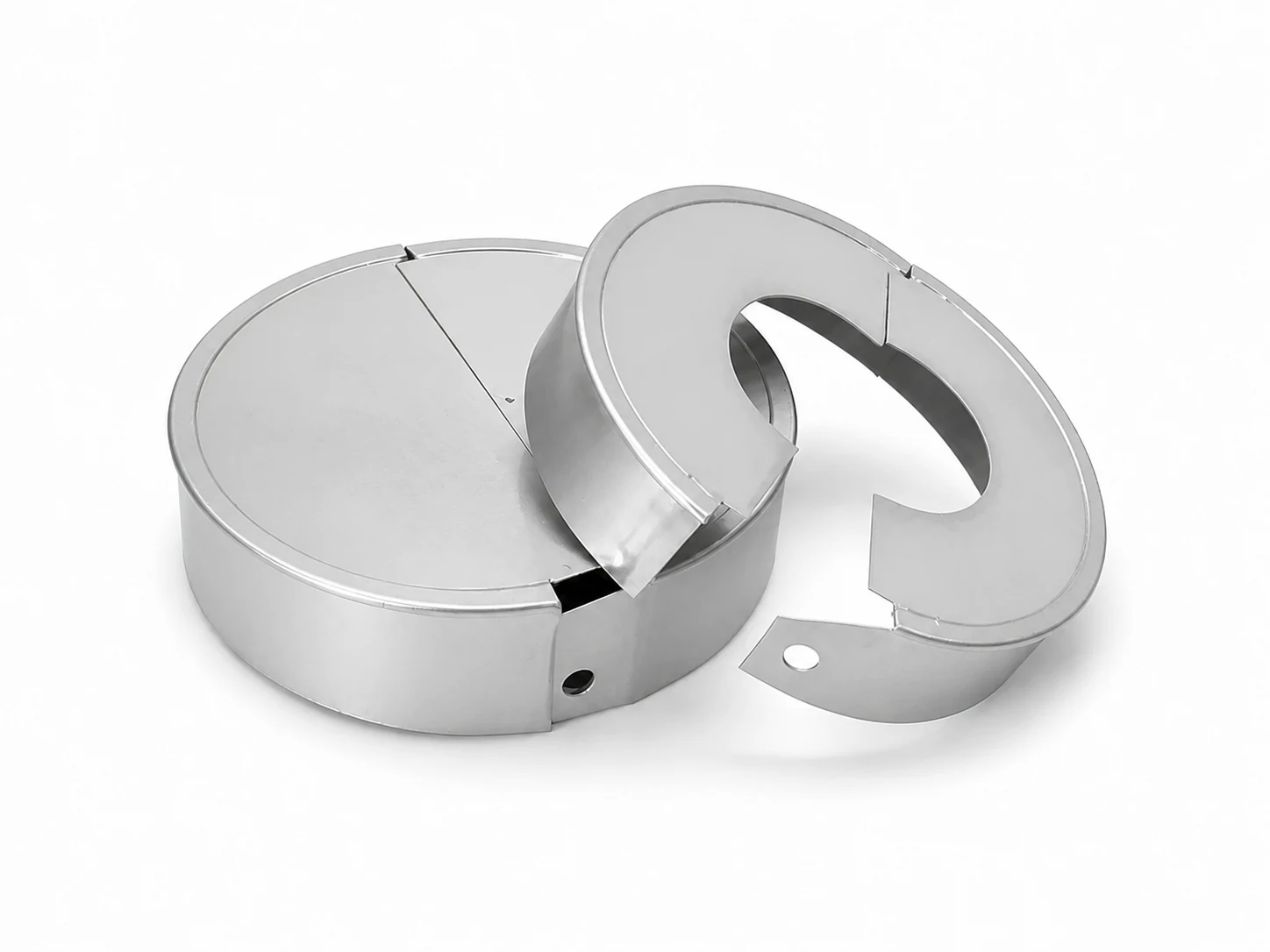

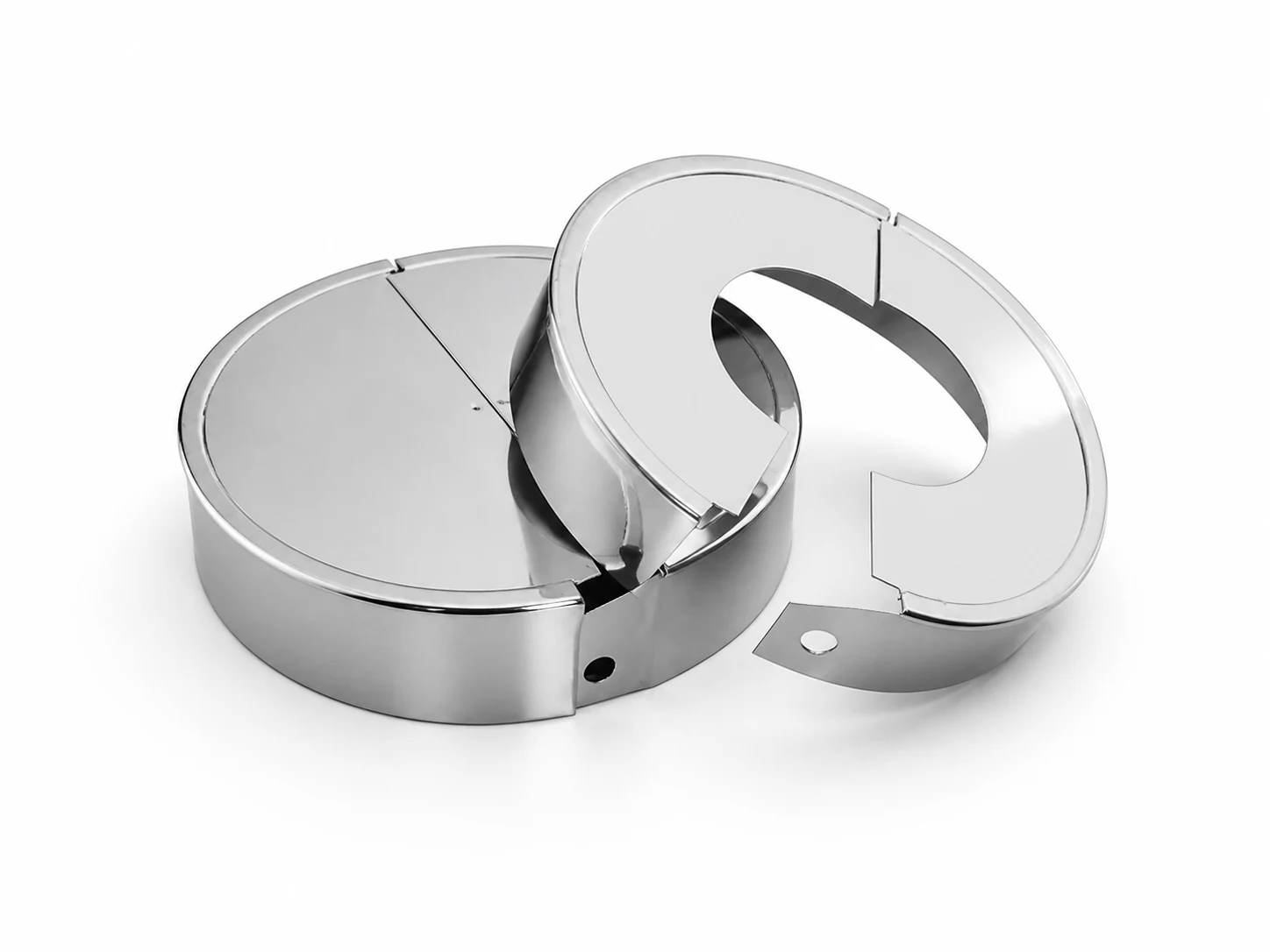

The same component can also be configured as a reducer where a larger pipe run meets a smaller connection. The standard range is available in aluminium, stainless steel and Colourbond finishes.
Installed example

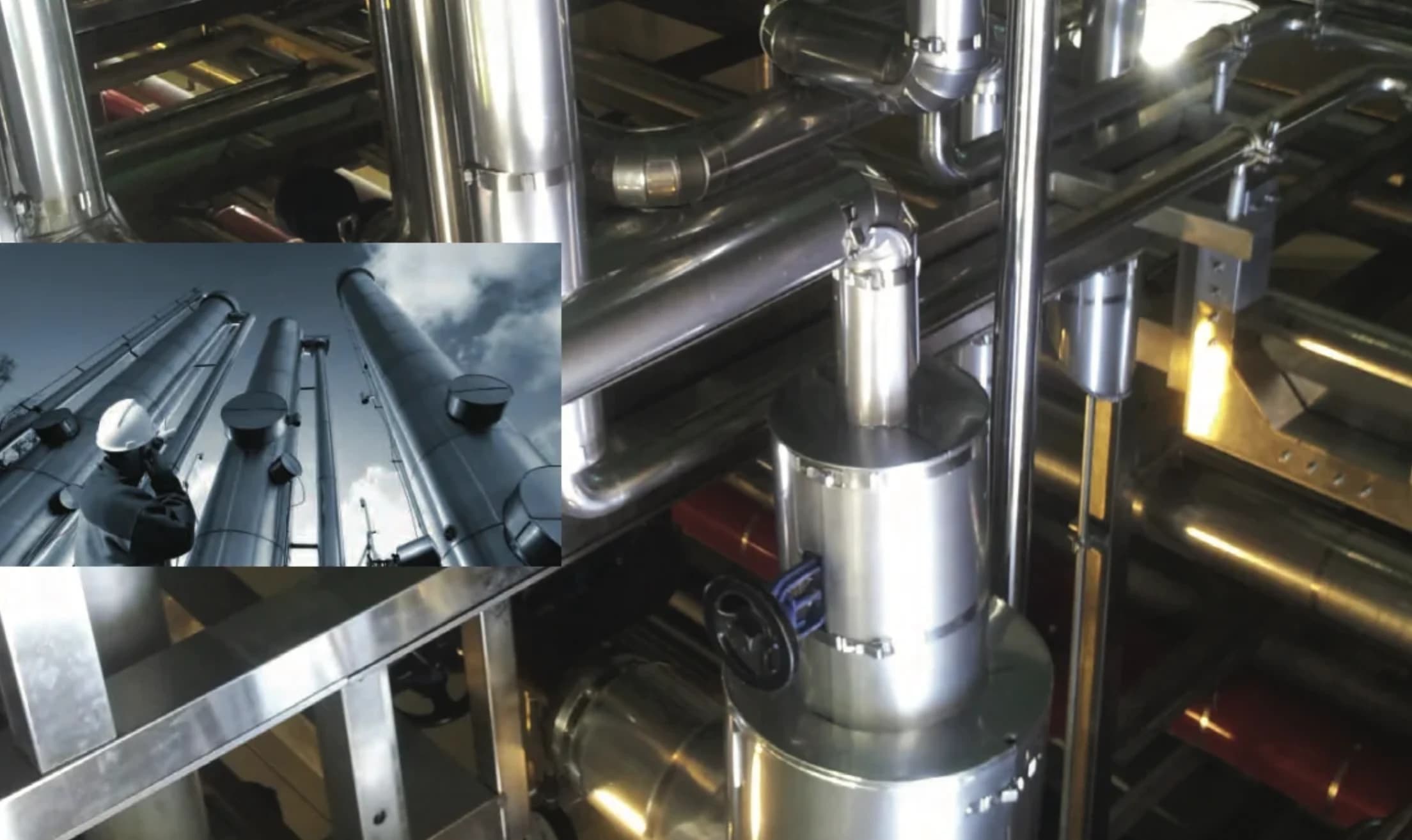

Installed end caps.
Installed ClickClad End Caps provide clean, protected terminations throughout a dense industrial pipe installation.
Colour options
Colour options for Colourbond cladding.
Select from the ClickClad colour range to coordinate your cladding with surrounding pipework.
Colour options are available for Colourbond cladding only. Aluminium and stainless steel are supplied in their natural metal finish.
On-screen colours are indicative only. Actual product colours may vary slightly.
- B00
- E00
- BE4
- B02
- N60
- NV3Matte finish
- EB4
- W21
- Y02
- G29
- O00
- R25
Metal finishes
Reference samples of natural metal surfaces. These are separate from the Colourbond colour range.
- GIGalvanised texture
- AL 1050Linear grain
- SUS 304LSmooth satin
- SUS MRMirror finish
Product resources
Product specifications and selection
Review the end caps section of the product specification sheet for dimensions, materials and configurations. Use the measurement guide to prepare your enquiry.
Project support
Tell us about your pipework.
Share your drawings, pipe sizes and insulation requirements and we’ll help you plan the right ClickClad system.
