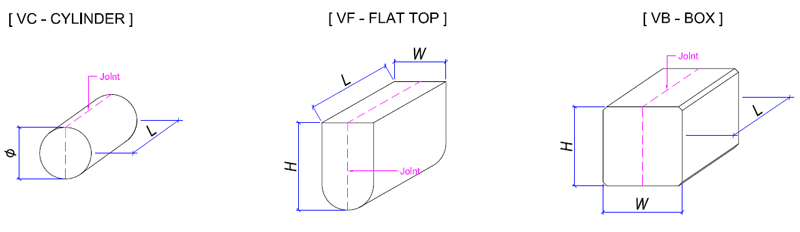

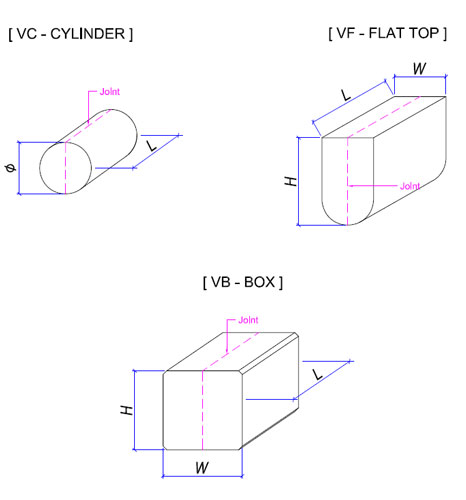

1. There are 3 simple shapes available Cylinder, Flat Top and Box for flange and valve covers.
2. When you decide on the shape of the flange and valve cover, consider valve type, valve accessories and any other obstructions such as the wall and pipe layout.
3. The minimum diameter of the ClickClad system is 75 mm.
4. When installing, give yourself enough clearance of around 15- 25 mm. For example: 200 W x 195 H x 250 L mm = 215 W x 210 H x 265 L mm.
5. Each unit comes with its own set of bands.
